110/70 Air Spring
Product Code: DR.07.019039
Specifications
| Part Number | DR.07.019039 |
| Air Spring Style | 110/70 Style |
| Cross Reference Number | W21-760-9039 |
| Minimum Height | 159 mm |
| Maximum Stroke | 101 mm |
| Maximum Usable Height | 260 mm |

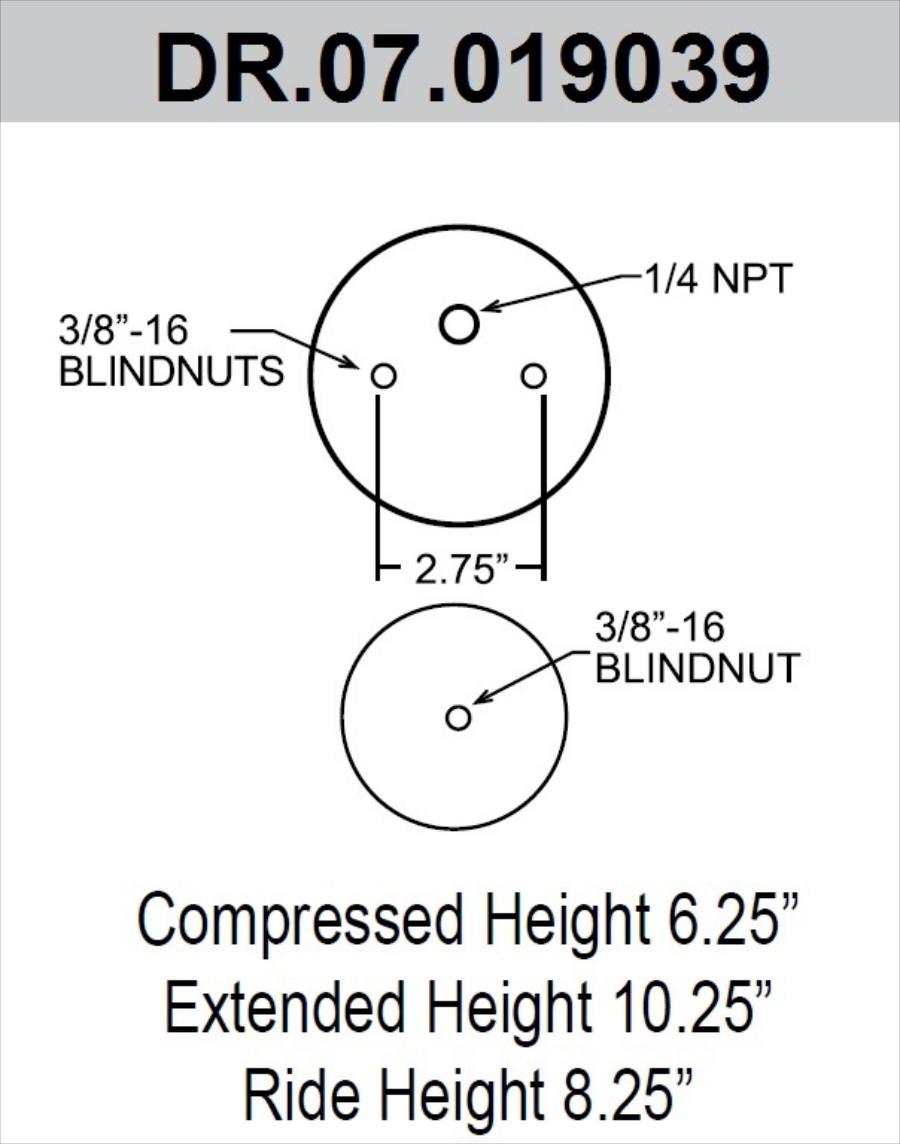

| Thread - Mounting Fittings | Imperial |
| Thread - Air Feed | Imperial |
| Loading Capacity @ 3 Bar (43 psi) | 2.22 kN |
| Loading Capacity @ 4.5 Bar (65 psi) | 3.33 kN |
| Loading Capacity @ 6.9 Bar (100 psi) | 5.18 kN |
| Natural Frequency Range @ 6.9 BAR | 1.34 Hz |
| Maximum Diameter @ 7 BAR | 145 mm |
| Operating Temperature | -37°C to 57°C |
Special Notes
The DR.07.019039 Air Spring has an Aluminium Top Cap.
