267C-1.5 Air Spring
Product Code: DR.07.016784
Specifications
| Part Number | DR.07.016784 |
| Air Spring Style | Style 267C-1.5 |
| Cross Reference Number | W21-760-6784 |
| Assembly Weight | 1.7 kg |
| Force to collapse to min height (@ 0 BAR) | 190 N |
| Minimum Height | 76 mm |
| Maximum Stroke | 112 mm |
| Maximum Usable Height | 188 mm |

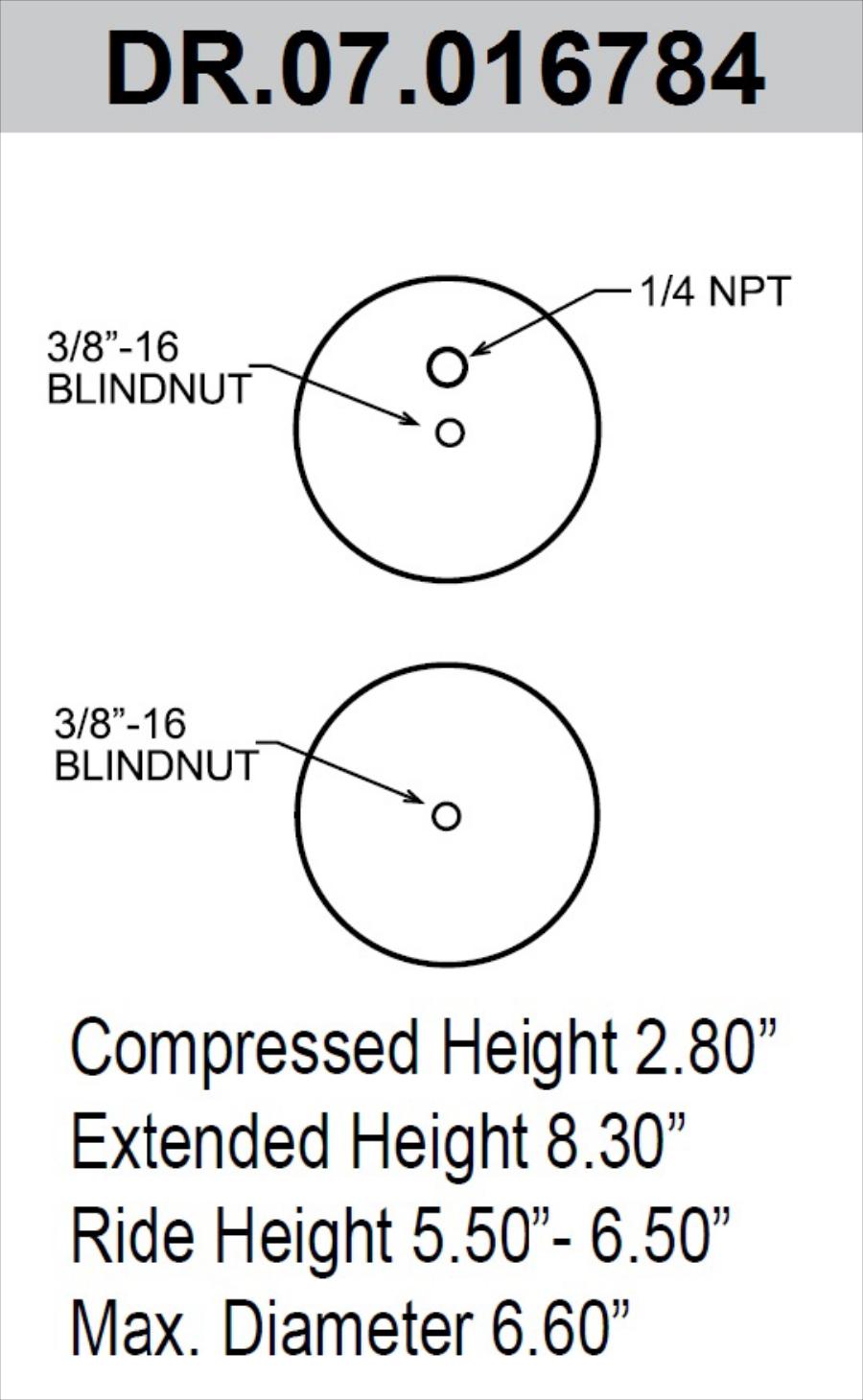

| Thread - Mounting Fittings | Imperial |
| Thread - Air Feed | Imperial |
| Loading Capacity @ 3 Bar | 2.71 kN |
| Loading Capacity @ 5 Bar | 4.83 kN |
| Loading Capacity @ 7 Bar | 7 kN |
| Natural Frequency Range @ 7 BAR | 2.08 Hz |
| Maximum Diameter @ 7 BAR | 163 mm |
| Operating Temperature | -37°C to 57°C |
Downloads
Click thumbnail to view detailed image.
