224 Style Air Spring
Product Code: DR.07.010335
Specifications
| Part Number | DR.07.010335 |
| Air Spring Style | Style 224 |
| Cross Reference Number | W21-760-0335 |
| Assembly Weight | 2.27 kg |
| Force to collapse to min height (@ 0 BAR) | 62 N |
| Minimum Height | 72 mm |
| Maximum Stroke | 123 mm |
| Maximum Usable Height | 195 mm |
| Thread - Mounting Fittings | Imperial |
| Thread - Air Feed | Imperial |
| Loading Capacity @ 3 Bar | 3.48 kN |
| Loading Capacity @ 5 Bar | 6.01 kN |
| Loading Capacity @ 7 Bar | 8.65 kN |
| Natural Frequency Range @ 7 BAR | 2.09 Hz |
| Maximum Diameter @ 7 BAR | 203 mm |
| Operating Temperature | -37°C to 57°C |
Downloads

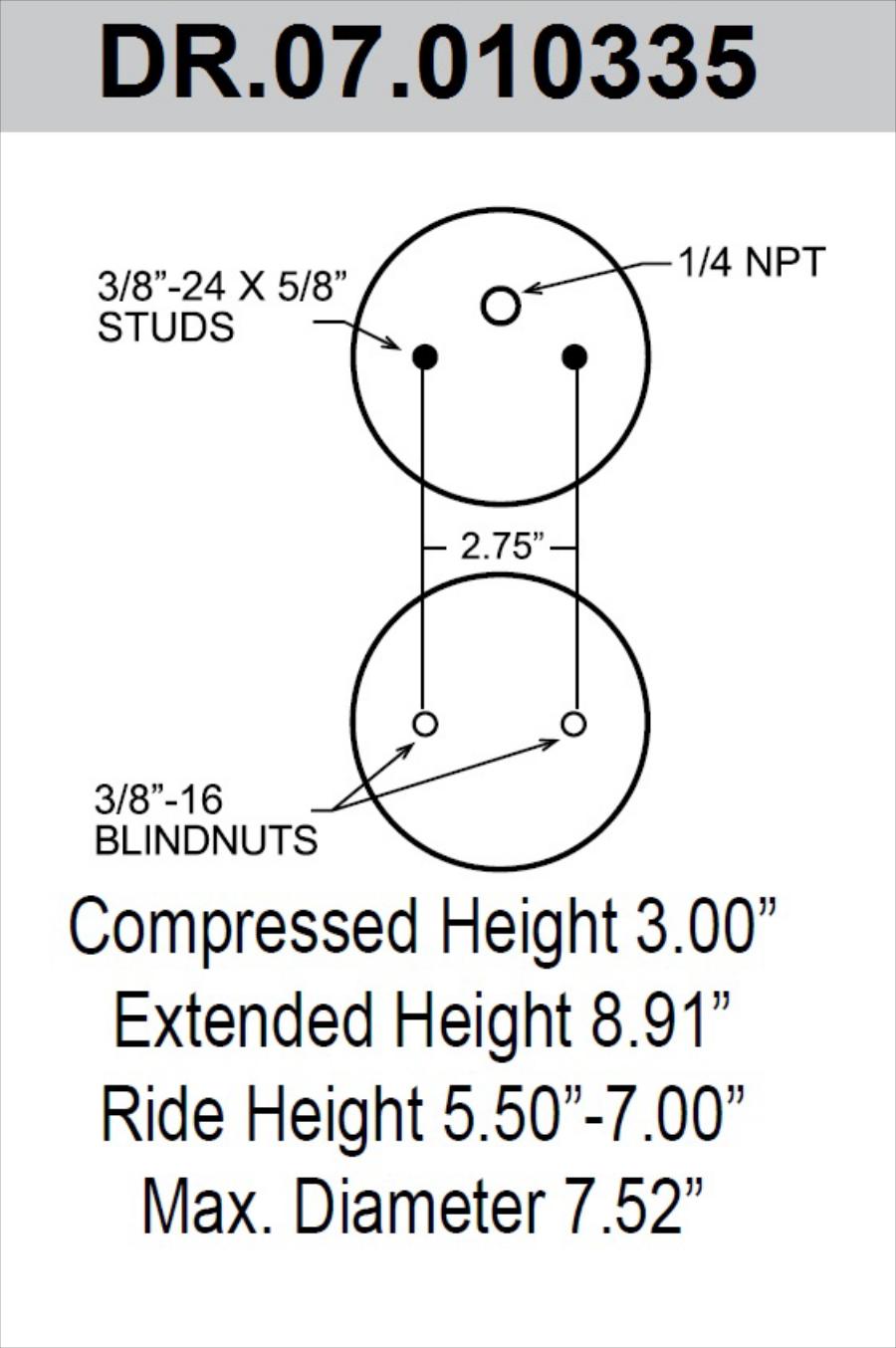

Click thumbnail to view detailed image.
