Case Study

Drive-Rite Lowered Suspension Solution for Renault / Opel / Nissan X83

The Problem:

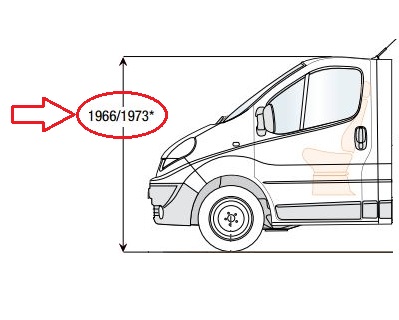

The current height of the standard X83 vehilce stands at 1966/1973 mm. TEST

This height is too high for access to many underground car parks due to the height restriction limit of 1.9 mtrs.

The Solution:

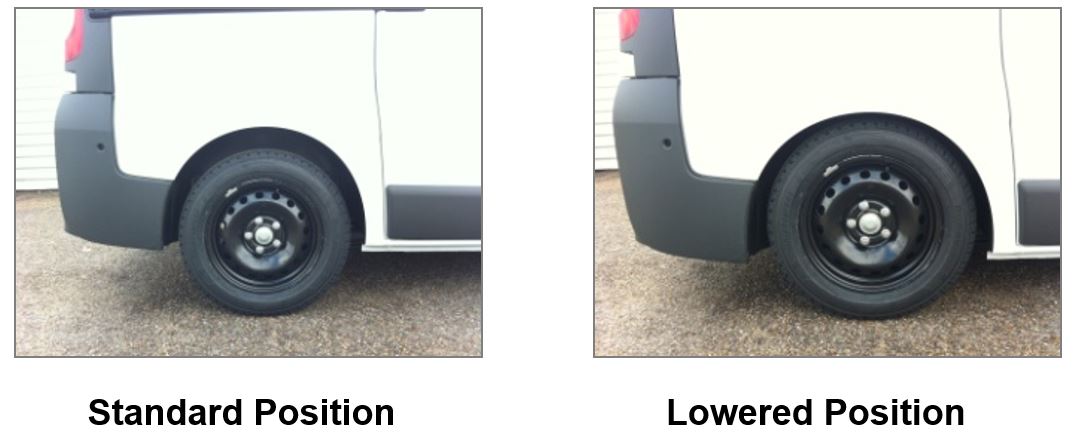

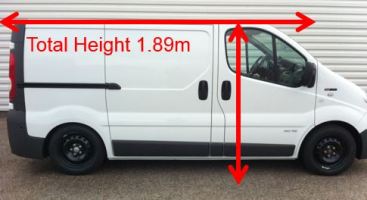

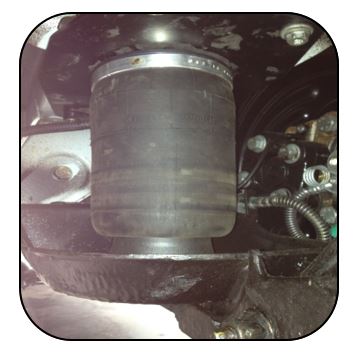

Drive-Rite have developed a solution to lower the overall height of the vehicle by replacing the standard coil springs at the front of the vehicle with lowered coils along with installing a Full Air Suspension Kit to the rear of the vehicle. The result allows the vehicle to have an overall height of 1.89 mtrs.

Advantages:

Lowered overall vehicle height allows for greater access to underground car parks etc.
Variable ride height – for access, off-road and high-speed driving
Rear lowering facility
Load-levelling
Handheld remote control unit
Near-constant ride frequency – load independent
Variable spring rate with optional driver adjustment
Optimized geometry (Drive line angles)
Improved ride quality
Improved head lamp aim

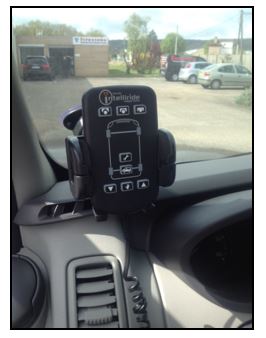

Drive-Rite IntelliRide Controls

IntelliRide is a fully automatic, Electronically Controlled Air Suspension (ECAS) System. When fitted the system provides comfort while maintaining a programmed ride height irrespective of the load. Multiple vehicle heights are available at the push of a button. The IntelliRide system has automatic load levelling at each height. The IntelliRide system continuously monitors inputs and component performance as a means of increasing safety and durability. The system recognizes and responds accordingly to potholes, cross-articulation and extended turns. This intelligence prevents unnecessary activity and air consumption. The system even recognizes unachievable heights, assisting in the prevention of possible damage above or below the vehicle.

Click here to download the product flier
