Air Compressor Medium Duty
Product Code:DR.12.015052
Specifications
| Compressor Type | Drive-Rite |
| Part # | DR.12.015052 |
| Integrated Dryer | No |
| Integrated Quick Release | No |
Electrical Data
| Operating Voltage Range | 9 - 16 V DC |
| Max. AMP Draw | 14 Amps |
| Duty Cycle | 15% |
| Temperature Range | -40 degC to 70 degC |
Pneumatic Data
| Pressure Control | 9 Bar (130 psi) |
| Volume Fill Time (RT) | 0-120psi (8.27 bar) in 120 sec for 1 gallon |
Other Data
| Mounting Position | Multi-axis |
| Weight | 1.61 kg (3.55 lbs) |
| Flow Data | See Spec Image |
| Tube Connection | 1/8" Thread fitting required. Suitable for 6mm tube or 1/4" tube fittings. |
| Standard Filter Kit | DR.12.019129 |
Special Notes
Use with up to 3.75 litres (1 gallon) Reservoir
Downloads
Click thumbnail to view detailed image.

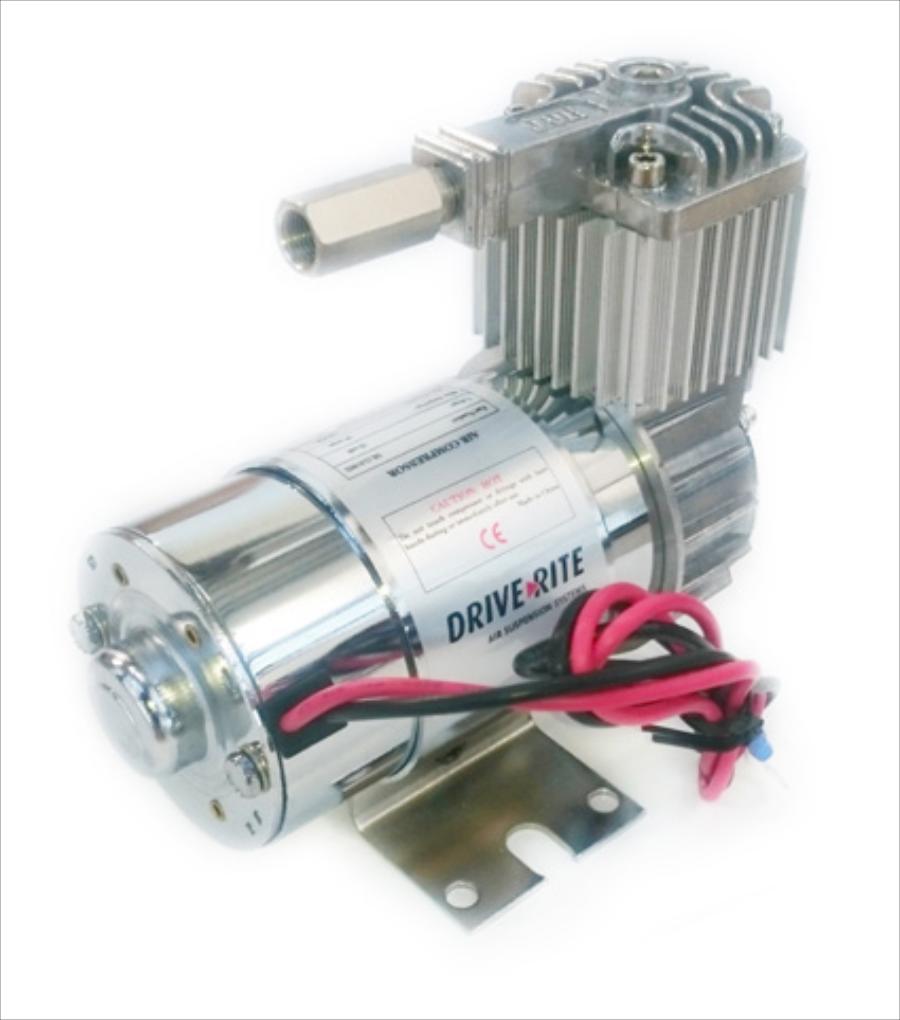

Medium Duty Compressor
The Medium Duty Drive-Rite compressors are direct drive compressors (no oil or belts), so the compressors can be mounted in any position.
The system offers a dependable, lasting service for moderate use applications.
